Description du produit

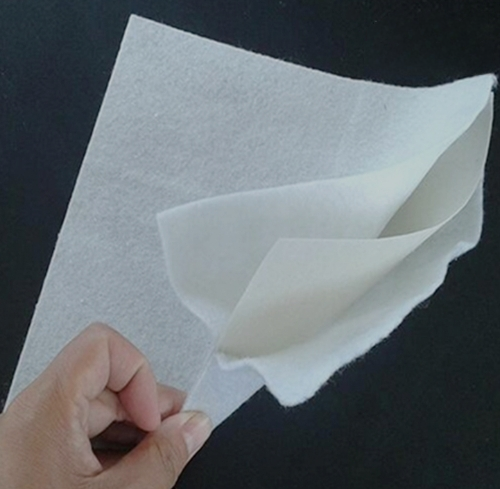

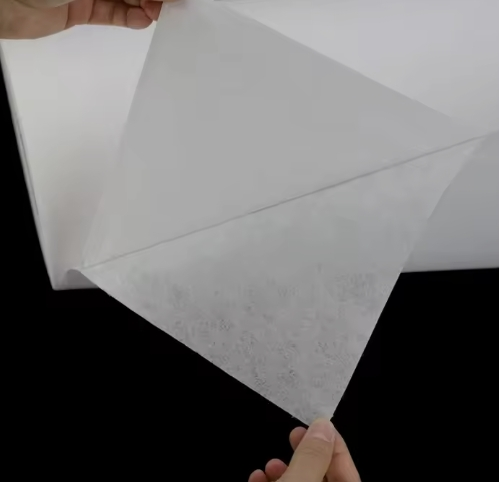

Composite geomembranes are made by thermally or adhesively bonding polyethylene (PE) impermeable membranes with needle-punched geotextiles. They combine the impermeability of the membrane with the tensile and protective strength of the geotextile layer. Available in “one fabric one film” or “two fabrics one film” structures.
Main Parameters
| Objet | Unit | Gamme |
| Structure type | - | One fabric one film / Two fabrics one film |
| Upper fabric mass | g/㎡ | 100–600 |
| Lower fabric mass | g/㎡ | 100–600 |
| Membrane thickness | mm | 0.2–1.5 |
| Tensile strength | kN/m | ≥5–25 |
| CBR puncture strength | kN | ≥1.1–3.5 |
| Tear strength | kN | ≥0.15–0.85 |
| Permeability coefficient k | cm/s | ≤1.0×10⁻¹³ |
| Largeur | m | 4.0–6.0 |
| Roll length | m | 50–150 |
| Standard | - | GB/T17642-2008 |
Caractéristiques du produit
Dual functions of anti-seepage and reinforcement
Excellent puncture, tear, and bursting resistance
Adapts to uneven foundation settlement
Efficient installation with width up to 6 meters
Long-term durability and UV resistance
Fonctions du produit
Anti-Seepage · Reinforcement · Protection · Separation
Application Fields

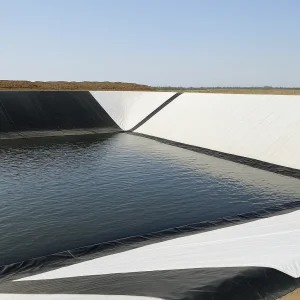

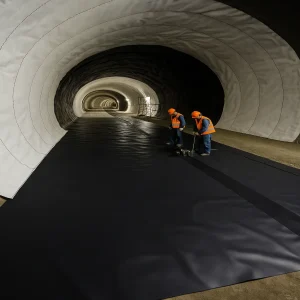

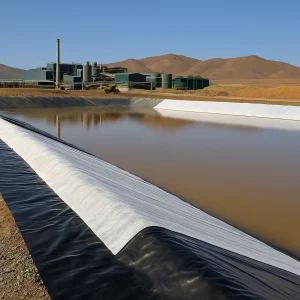

Reservoir and dam seepage control / Landfill liners / Tailings ponds and wastewater basins / Tunnel waterproof lining / Port leachate and storage ponds
