1. Composite Geomembrane for Seepage Control, Reinforcement, and Long-Term Project Protection

What Is Composite Geomembrane?

Composite geomembrane is a high-performance anti-seepage material made by bonding nonwoven geotextile with a geomembrane layer, usually HDPE or LLDPE. This composite structure combines the impermeable barrier function of a liner with the protective, reinforcing, cushioning, and anti-skid performance of geotextiles.

In practical engineering, composite geomembrane is commonly supplied in structures such as one geotextile plus one membrane or two geotextiles plus one membrane. Because the layers are integrated through thermal bonding, the final material offers reliable sealing performance together with mechanical protection, making it suitable for demanding environmental and hydraulic applications.

Why Composite Geomembrane Matters in Modern Engineering Projects

Seepage control is one of the most critical requirements in landfills, reservoirs, canals, tailings facilities, aquaculture ponds, and wastewater treatment systems. A single liner may provide impermeability, but many projects also require puncture resistance, slope stability, tensile strength, and installation efficiency.

Composite geomembrane solves these challenges by combining multiple functions into one engineered material. The geomembrane layer provides low permeability and chemical resistance, while the nonwoven geotextile layers help protect the membrane, improve friction, reduce slippage, and enhance structural stability. This integrated design can reduce the need for additional protective layers and help simplify site installation.

Composite Geomembrane Structure and Material Options

Composite geomembrane can be manufactured in different structures to match project requirements. The most common constructions include:

Composite Geomembrane with One Geotextile and One Membrane

This structure is often selected when projects require effective impermeability with one protective textile layer. It can be suitable for applications where installation conditions are relatively controlled and the project design does not require textile protection on both sides.

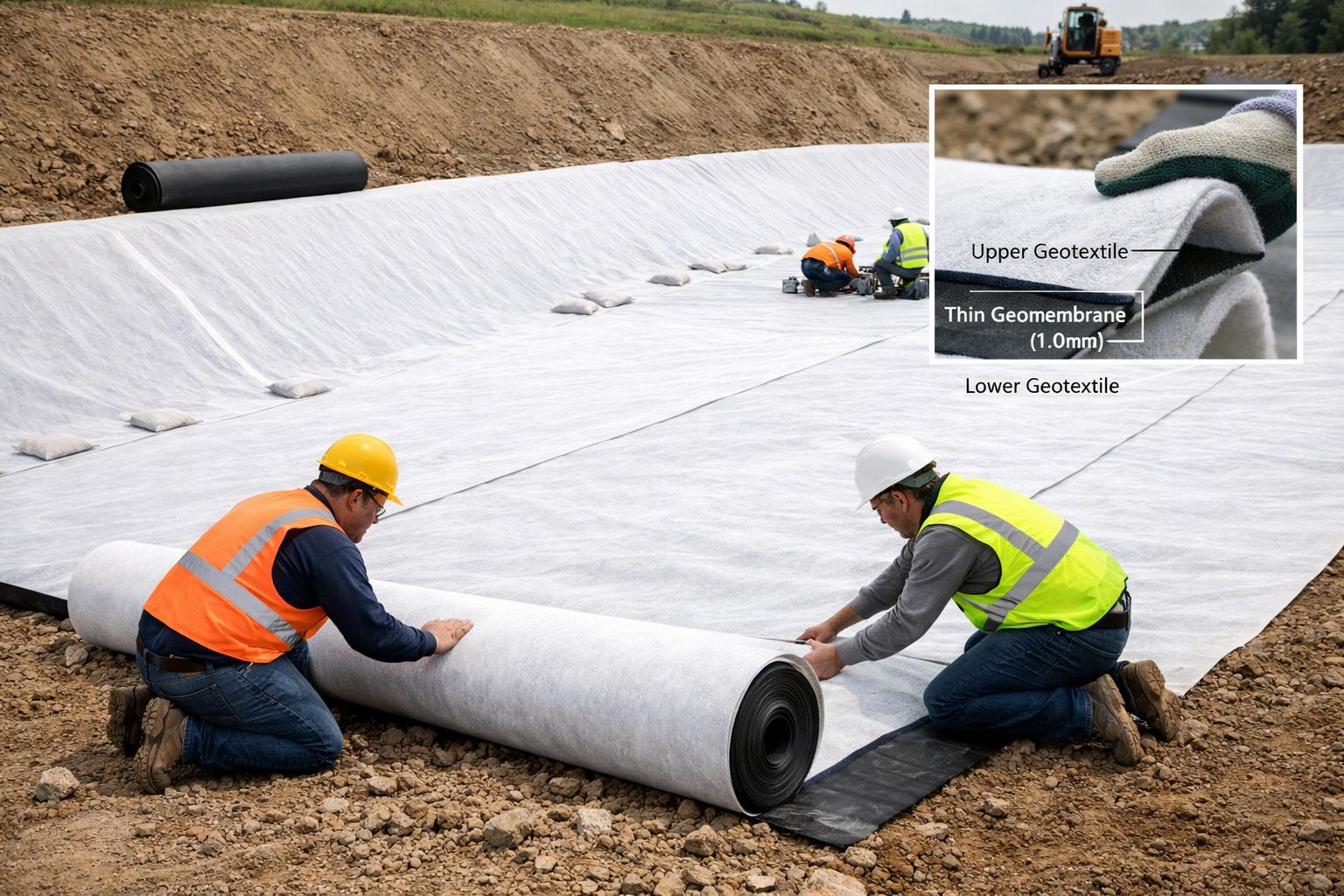

Composite Geomembrane with Two Geotextiles and One Membrane

This structure provides textile protection on both sides of the membrane. It is frequently used in projects where greater puncture resistance, friction performance, and structural protection are needed, such as landfill systems, mining facilities, and heavy-duty hydraulic works.

Composite Geomembrane Material Options

The membrane layer is typically produced from HDPE, LLDPE, or PVC, depending on chemical resistance, flexibility, and project design requirements. The geotextile component may use long fiber or short fiber needle-punched nonwoven geotextiles, allowing engineers and buyers to choose the right balance between strength, cushioning performance, and cost efficiency.

Composite Geomembrane Key Performance Advantages

Composite geomembrane is widely used because it delivers multiple engineering benefits in one product.

Composite Geomembrane for Excellent Seepage Control

The geomembrane layer offers very low permeability and forms the primary waterproof barrier. When HDPE is used, the material also provides strong resistance to many chemicals, making it suitable for landfill leachate systems, mining containment areas, and wastewater treatment environments.

Composite Geomembrane for Protection and Reinforcement

The nonwoven geotextile layer helps protect the membrane from puncture, abrasion, and external damage during transportation, installation, and long-term service. At the same time, it contributes to improved tensile, tear, and puncture resistance for the full composite system.

Composite Geomembrane for Friction and Slope Stability

The textile surface improves the friction coefficient compared with a smooth membrane alone. This helps increase slope stability, reduce sliding risk, and improve overall construction safety in embankments, side slopes, dams, and landfill cells.

Composite Geomembrane for Faster Installation

Because composite geomembrane integrates barrier and protection functions into one material, it can reduce installation complexity and save time on site. In many projects, this means lower labor input, reduced layer separation risk, and more efficient project progress.

Composite Geomembrane Applications in Engineering and Environmental Protection

Composite geomembrane is widely used in infrastructure, environmental protection, water conservancy, and industrial containment projects.

Composite Geomembrane for Landfills and Waste Containment

In landfill engineering, composite geomembrane is used as a liner system to control leachate seepage and reduce environmental contamination risk. Its combination of impermeability and protective textile layers helps improve long-term reliability under demanding conditions.

Composite Geomembrane for Dams, Reservoirs, and Canal Seepage Control

In water conservancy projects, composite geomembrane is used for reservoirs, canals, dams, ponds, and seepage prevention systems. The material helps reduce water loss, enhance slope safety, and improve lining durability in hydraulic structures.

Composite Geomembrane for Mining and Tailings Management

Mining applications include tailings dams, heap leaching pads, and solution storage areas. These projects often require both chemical resistance and mechanical protection, making HDPE-based composite geomembrane a preferred solution for many containment systems.

Composite Geomembrane for Aquaculture and Water Farming Systems

In aquaculture ponds and water farming systems, composite geomembrane helps control leakage, maintain water levels, and improve operational management. The composite structure also supports installation stability on slopes and embankments.

Composite Geomembrane for Transportation and Underground Infrastructure

Composite geomembrane can also be used in transportation infrastructure, tunnels, and subway construction where seepage control and protection are important. Its multi-layer design supports more stable system performance in complex site conditions.

Composite Geomembrane Customization Options

Different projects require different material combinations and specifications. Composite geomembrane can be customized in terms of membrane thickness, geotextile weight, fiber type, roll dimensions, and overall structure.

Customization may include:

• HDPE, LLDPE, or PVC membrane options
• Long fiber or short fiber nonwoven geotextile
• One geotextile plus one membrane structure
• Two geotextiles plus one membrane structure
• Different thickness and weight combinations based on project design

This flexibility makes composite geomembrane suitable for both standard and project-specific containment systems.

Why Choose Boshida as Your Composite Geomembrane Manufacturer

Boshida Nonwoven Textile Co., Ltd. was established in 1991 and has specialized manufacturing experience in needle-punched nonwoven materials. The factory is located in Boye County, Baoding City, Hebei Province, China, covers 40,000 square meters, and operates 10 fully automated intelligent needle-punching production lines with daily capacity exceeding 300,000 square meters.

For engineering and infrastructure applications, composite geomembrane is one of the core materials in Boshida’s solution system, together with short fiber needle-punched geotextile and long fiber needle-punched geotextile. The engineering solution focuses on reinforcement, isolation, drainage, seepage control, and protection for highways, railways, dams, reservoirs, slope protection, landfills, and municipal construction.

Boshida supports customized development, stable quality control, and fast delivery. Standard orders can be shipped within 7 days, and urgent orders can be dispatched within 48 hours. The production system includes AI online quality monitoring, and the company supports export packaging as well as full-process quality control from incoming materials to finished product testing and warehousing.

Composite Geomembrane FAQ

What is composite geomembrane made of?

Composite geomembrane is made by bonding a geomembrane layer, usually HDPE, LLDPE, or PVC, with one or two layers of nonwoven geotextile. This creates a material that offers both impermeability and mechanical protection.

What is composite geomembrane used for?

Composite geomembrane is used for landfill liners, waste containment, dams, canals, reservoirs, mining tailings systems, heap leaching pads, sewage treatment plants, aquaculture ponds, tunnels, and other seepage control projects.

Why use composite geomembrane instead of a single geomembrane?

Composite geomembrane provides not only waterproof performance but also protection, reinforcement, puncture resistance, friction improvement, and easier installation. This makes it more suitable for many complex engineering environments.

Can composite geomembrane be customized?

Yes. Composite geomembrane can be customized by membrane material, membrane thickness, geotextile type, geotextile weight, and composite structure to meet different project requirements.

Is composite geomembrane suitable for mining and landfill applications?

Yes. Composite geomembrane is widely used in mining and landfill projects because it combines low permeability, chemical resistance, protective cushioning, and structural stability.
