Geotextile
Engineered for civil engineering and environmental infrastructure, Boshida’s needle-punched staple fiber and continuous filament spunbond geotextiles (100–1,000 gsm) deliver superior soil stabilization, filtration, drainage, and erosion control for highways, railways, landfills, and coastal projects. Request Technical Datasheets & Factory-Direct Pricing →
Core Geotextile Types & Manufacturing Technologies

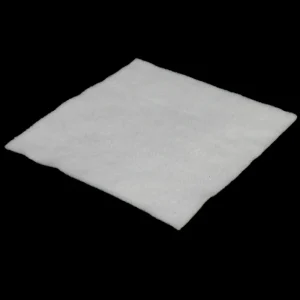

1. Staple Fiber Needle-Punched Nonwoven Geotextile
Manufactured from short-staple PET or PP fibers mechanically interlocked via high-speed barbed needles, creating a dense, three-dimensional porous structure:
-
Key Strengths: Exceptional water permeability, high elongation at break (40%–80%), superior conformability to uneven subgrades, and cost-effective performance.
-
Best For: Subgrade separation, French drains, retaining wall drainage, and general landscaping erosion control.
2. Continuous Filament Spunbond Needle-Punched Geotextile
Produced by extruding continuous polyester (PET) filaments directly into a web followed by heavy-duty needle-punching:
-
Key Strengths: Outstanding tensile strength, superior CBR puncture resistance, high tear strength, and long-term creep resistance under extreme mechanical loads.
-
Best For: Heavy-duty highway/railway foundations, landfill liner protection (paired with Geomembranes), airport runways, and coastal revetments.
PET vs. PP Geotextile: Material Selection Guide
Choosing between Polyester (PET) and Polypropylene (PP) depends on your project’s soil pH, temperature exposure, and tensile load requirements:
| Comparison Parameter | Polyester (PET) Geotextile | Polypropylene (PP) Geotextile |
| Tensile & Puncture Strength | Higher tensile modulus & superior CBR puncture resistance | Good tensile strength with higher elongation |
| Chemical & pH Resistance | Excellent resistance to acidic and neutral soils; sensitive to high alkalinity (pH > 10) | Exceptional resistance to both strong acids and high-alkaline (cement/lime) soils |
| Thermal Stability | High melting point (~260°C); ideal for hot asphalt paving overlays | Lower melting point (~165°C); suited for standard ambient installations |
| Specific Gravity | 1.38 g/cm³ (sinks naturally in water — ideal for underwater/coastal projects) | 0.91 g/cm³ (lightweight, high yield per unit weight) |
| Primary Applications | Highways, railways, asphalt reinforcement, coastal & hydraulic works | Municipal landfills, chemical containment, alkaline soil stabilization |
Technical Specifications & Roll Dimensions
Boshida manufactures custom geotextile rolls to meet international engineering standards (ASTM D4595, ASTM D4632, EN ISO 10319):
| Technical Parameter | Standard Specification Range | Customization Options |
| Basis Weight (GSM) | 100 gsm – 1,000 gsm (Standard: 150g, 200g, 300g, 400g, 500g, 600g, 800g) | Custom gram weights up to 1,500 gsm |
| Grab Tensile Strength | 400 N – 3,500 N | Engineered to project tender specs |
| CBR Puncture Resistance | 800 N – 7,500 N | High-puncture grades for sharp aggregate |
| Roll Width | 1.0 m – 6.5 m (Standard: 4.0 m & 6.0 m) | Precision slitting to exact site widths |
| Roll Length | 50 m – 200 m per roll | Tailored to optimize 20GP / 40HQ container loading |
| Standard Colors | White, Black, Grey, Green | Custom UV-stabilized colors available |
Five Core Engineering Functions & Applications
-
Soil Separation (Roads, Highways & Railways): Prevents fine subgrade soils from mixing with coarse aggregate base layers, maintaining structural integrity and preventing rutting under heavy traffic loads.
-
Filtration (Subsurface Drainage & Retaining Walls): Allows groundwater to pass freely through the fabric’s micro-pores while retaining soil particles, preventing clogging in drainage trenches and behind retaining structures.
-
In-Plane Drainage (Tunnels & Embankments): Thick needle-punched geotextiles channel excess water along the plane of the fabric, relieving hydrostatic pressure in tunnels and earth dams.
-
Geomembrane Protection (Landfills & Reservoirs): Acts as a high-puncture cushion layer above and below HDPE Geomembranes and Bentonite Waterproof Blankets to prevent sharp gravel punctures.
-
Erosion Control (Coastal & Slope Protection): Stabilizes riverbanks, shorelines, and steep embankments against wave action and surface runoff. (For modular slope greening, explore our Geotextile Bags for Slope Protection.)
How to Select the Right Geotextile GSM for Your Project
-
100 – 150 gsm: Residential landscaping, weed control, French drains, and light agricultural drainage.
-
200 – 300 gsm: Municipal roads, parking lots, pedestrian pathways, and general soil separation.
-
300 – 500 gsm: Major highways, railway subgrades, retaining wall filtration, and medium-duty erosion control.
-
500 – 1,000+ gsm: Municipal solid waste landfills, mining heap leach pads, dams, tunnels, and heavy coastal riprap protection.
Sustainability & Eco-Friendly Geosynthetic Innovation
As green infrastructure becomes a global priority, Boshida offers GRS-certified recycled Polyester (rPET) geotextiles alongside virgin polymer grades. By replacing thick layers of quarried aggregate with lightweight, durable geosynthetics, our geotextiles significantly reduce carbon emissions, excavation costs, and construction timelines.
Need help matching our geotextile specifications to your engineering tender? Contact Boshida’s technical sales team today for free physical test samples, SGS/ASTM datasheets, and factory-direct container quotes!
Frequently Asked Questions About Geotextiles
Q1: What is the difference between staple fiber and continuous filament geotextile?
A: Staple fiber geotextile is made from cut fibers (30–65 mm) and offers excellent permeability and cost efficiency for filtration and road separation. Continuous filament spunbond geotextile is made from unbroken extruded filaments, delivering significantly higher tensile strength and puncture resistance for heavy-load projects like landfills, railways, and coastal engineering.
Q2: How do I choose between PET and PP geotextile for my construction site?
A: Choose PET (Polyester) when your project requires maximum tensile strength, underwater sinking (specific gravity 1.38), or high-temperature resistance (such as asphalt paving). Choose PP (Polypropylene) when working with high-alkaline soils (pH > 10, such as cement- or lime-stabilized bases) or harsh chemical landfill leachates.
Q3: Can Boshida customize geotextile roll widths and tensile specs to match our tender requirements?
A: Yes. As a direct manufacturer since 1991, we customize basis weight (100–1,500 gsm), roll width (up to 6.5 meters), roll length, UV resistance, and mechanical strength parameters to comply with ASTM, CE, or your local engineering tender specifications.
Q4: What is your Minimum Order Quantity (MOQ) and sample policy?
A: Our standard MOQ is 3,000 to 5,000 square meters per specification (mixed specifications can be consolidated into a single 20GP or 40HQ container). We provide free A4 or small roll samples for your laboratory testing—you only cover international express courier costs.
